WHAT MAKES A CUMMINS STANDBY GENERATOR RIGHT FOR YOU?

compact-design

COMPACT DESIGN

The compact design allows installation close to your home, and the sleek appearance blends into your landscape.

no-start-exercising

NO START EXERCISING

The generator offers an eco-friendly way to run diagnostics without starting the engine, giving homeowners confidence while decreasing fuel consumption and noise.

quiet

QUIET

Patented sound technology and an advanced housing design help make these generators some of the quietest in the industry.

load-management

LOAD MANAGEMENT

Intelligent learning allows homeowners to do more with a smaller generator, providing optimal performance and convenience.

exceptional-motor-starting

EXCEPTIONAL MOTOR STARTING

With powerful motor starting ability, these generators can easily start and run a 5-ton A/C under full pre-load.

cold-weather-capability

COLD WEATHER CAPABILITY

Cummins standby generators are designed to operate at 0° F out of the box and well below freezing with a cold weather kit.

remote-monitoring

REMOTE MONITORING

Advanced remote monitoring allows you to monitor and control your generator at no cost and from almost anywhere while using a mobile device.

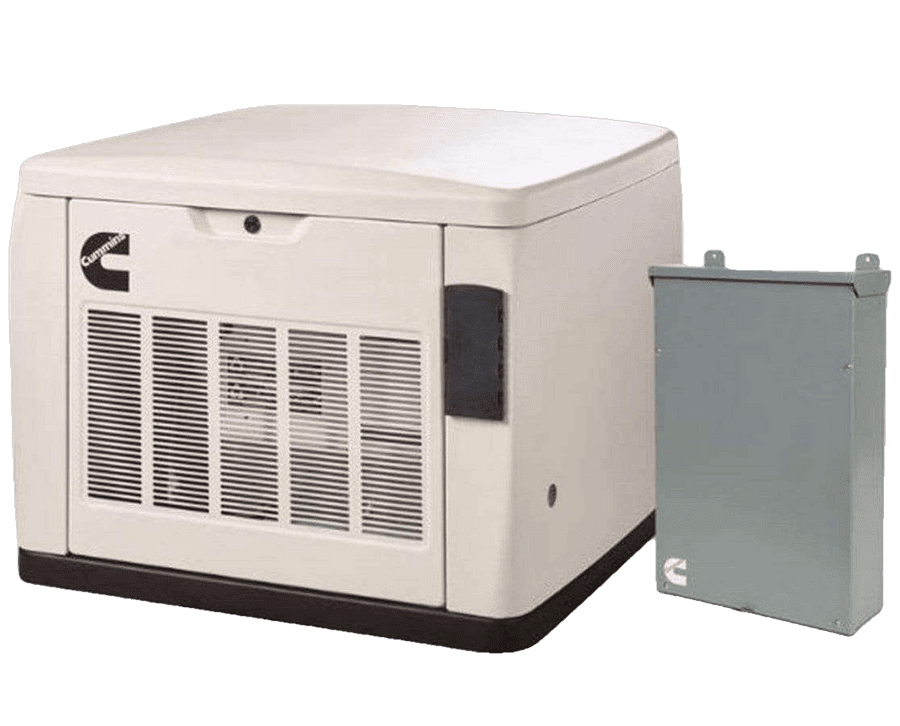

Built with the same innovation and reliability that goes into every engine and generator from Cummins, the QuietConnect standby generators range from 13 to 150 kW

DESIGNED FOR QUIET, POWERFUL PERFORMANCE

AVAILABLE IN 12-150 KW MODELS

  • Designed to be quiet and nonintrusive
  • Advanced enclosure provides an aesthetically appealing look
  • Remote monitoring makes it easy to troubleshoot from almost anywhere
  • Capable of running on clean-burning liquid propane or natural gas

QUIET CONNECT SERIES SPECIFICATIONS​

Model NameRating (kW)(NG and LPG)Rated Amps (NG and LPG)FuelVoltagePhaseDimensions (in)Sound levels dB (A)
RS13A1354.2NG/LP120/240134.1 x 36 x 27.365
RS17A1770.8NG/LP120/240134.1 x 36 x 27.365
RS20A/AC2075.0/83.3NG/LP120/240134.1 x 36 x 27.365
RS222291.7NG/LP120/240172 x 34 x 45.564
RS2525104.2NG/LP120/240172 x 34 x 45.564
RS3030125.0NG/LP120/240194 x 34 x 45.560
RS3636150.0NG/LP120/240194 x 34 x 45.563
RS4040166.7NG/LP120/240194 x 34 x 45.563
RS5050208.0NG/LP120/2401118.7 x 40 x 58.369
RS6060250.0NG/LP120/2401118.7 x 40 x 58.370
RS8080333.0NG/LP120/2401118.7 x 40 x 58.370
RS100100417.0NG/LP120/2401118.7 x 40 x 58.371
RS125125520.0NG120/2401143 x 40 x 7273
RS150150625.0NG120/2401143 x 40 x 7273
Cummins offers a competitive base warranty with fewer exclusions than other brands. 13, 17 and 20 kW models include a 5-year/2,000 hour limited warranty; 22-150 kW models include a 2-year limited warranty. Cost-effective extended warranty options allow for full coverage for up to 10 years. Please speak to your Cummins Authorized Dealer for more information.

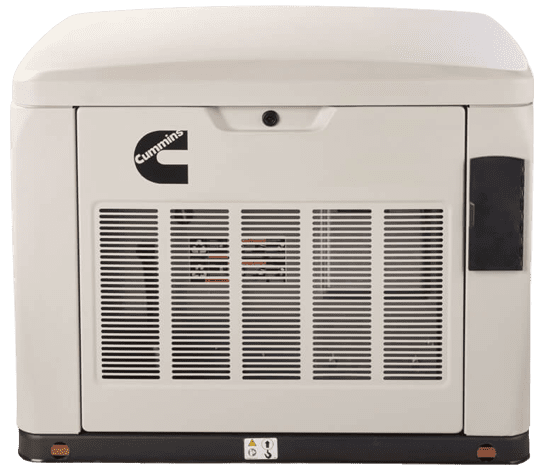

AIR COOLED MODELS
13, 17 AND 20 kW

STANDARD FEATURES

OPTIONAL FEATURES

LIQUID COOLED MODELS
22-150 kW

STANDARD FEATURES

OPTIONAL FEATURES

AUTOMATIC TRANSFER SWITCH SPECIFICATIONS

Model NameRatingVoltageEnclosureDimensions (in)
RA 100 NSE100 A120/240 V 1 phase3R24.0 x 17.0 x 7.4 in
RA 200 NSE200 A120/240 V 1 phase3R27.1 x 18.2 x 7.4 in
RA 400 NSE400 A120/240 V 1 phase3R (Aluminum)36.9 x 24.9 x 11.1 in
Service Entrance Models
RA 100 SE100 A120/240 V 1 phase3R23.3 x 19.8 x 7.2 in
RA 200 SE200 A120/240 V 1 phase3R23.3 x 19.8 x 7.2 in
RA 400 SE400 A120/240 V 1 phase3R (Aluminum)47.9 x 23.4 x 11.3 in
