HOME STANDBY GENERATOR SYSTEMS

fully-automatic-24-7

FULLY AUTOMATIC 24/7

No refuelling, manual operation, or extension cords needed

QUIETEST IN CLASS

Low-tone muffler design with custom sound baffling system

more-fuel-efficient

MORE FUEL EFFICIENT

Up to 13% better fuel economy than our top competitors

easy-access

EASY ACCESS

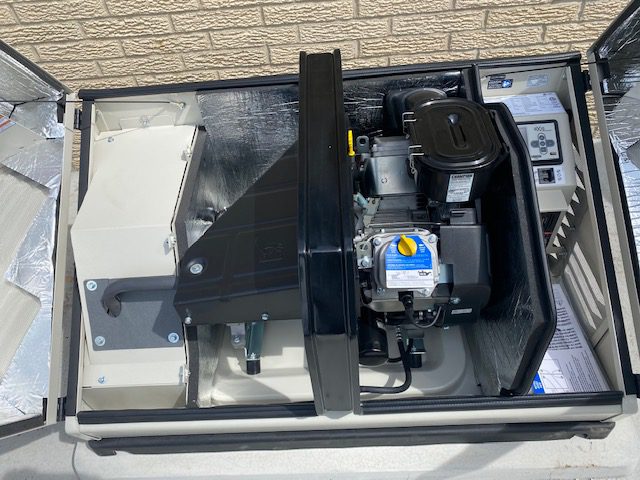

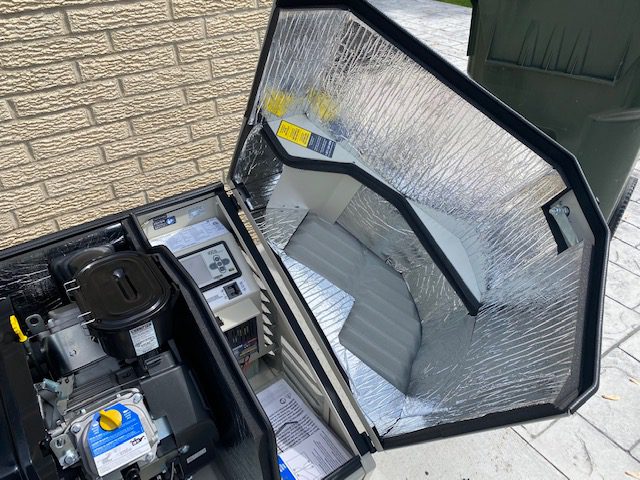

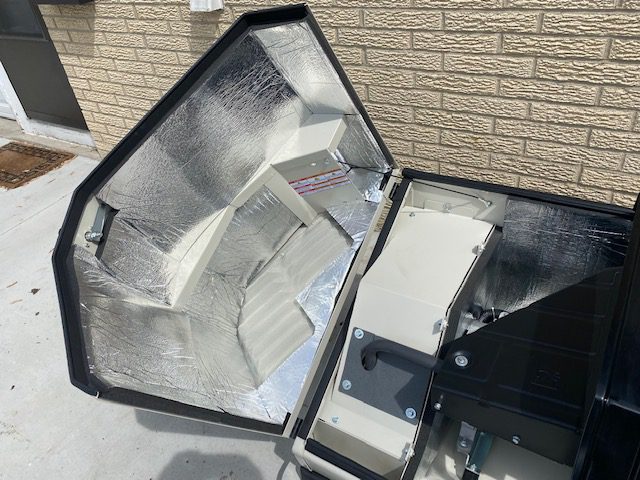

Innovative gullwing enclosure for easy installation and service

sub-zero-high-heat

SUB ZERO/HIGH HEAT

24V starting system designed to operate from -22º to 104º F

10-year-warranty

10 YEAR WARRANTY

Longest standard warranty on the home standby market

FASTER INSTALLS, LESS WIRING SAVE MORE TIME, EARN MORE MONEY

  • aXis is a programmable, upgradable home standby system that gives you access to more options...wirelessly
  • Using Power Line Carrier technology aXis eliminates the need for communication wiring* from generator to switch and modules
  • aXis load management allows you to use a smaller generator to manage larger residential homes
  • Using aXis load management modules, loads can be assigned priority levels (1-4) allowing for customization on how the home's appliances are managed. Large electric loads can also be locked out entirely while under standby power
  • aXis Wi-Fi technology allows for onsite setup from phone or tablet

*Wiring for battery charge is required.

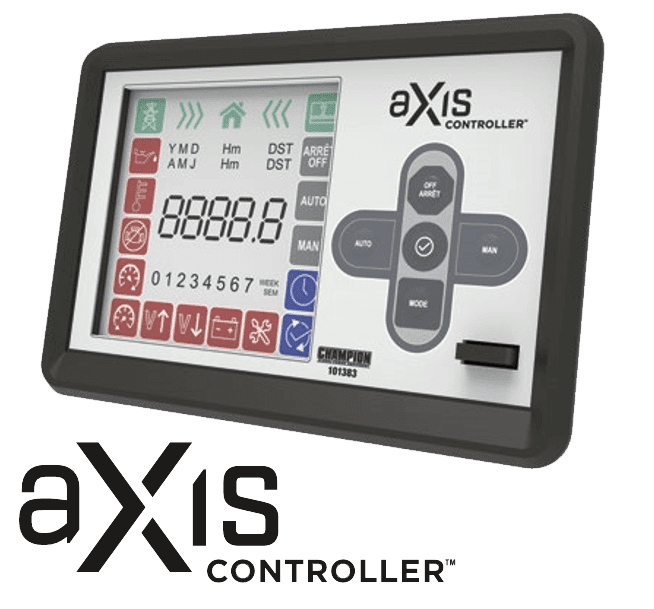

NEW DIGITAL CONTROLS

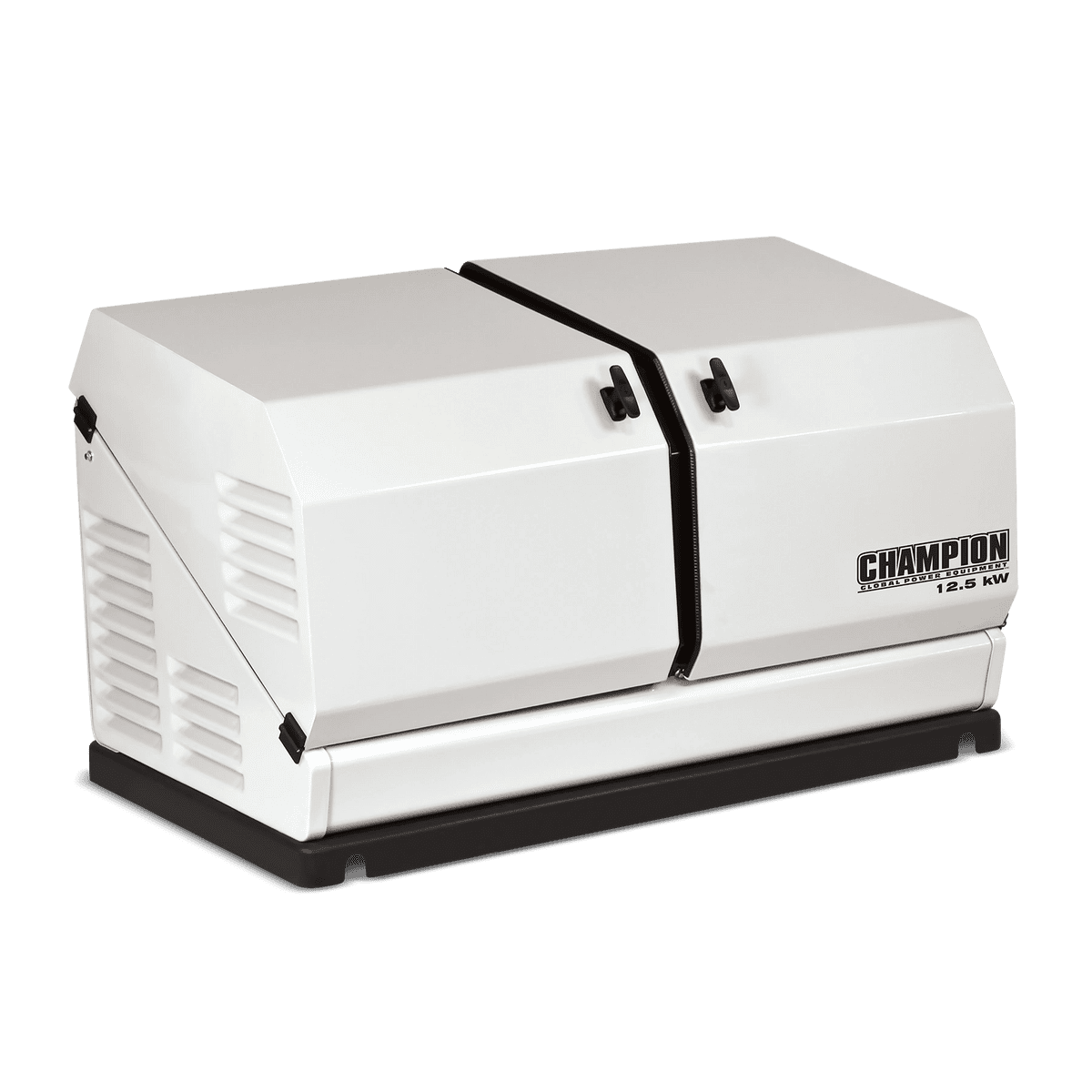

GENERATOR (HSB)SPECS
Rated watts (propane / natural gas)14 kW / 12.5 kW
Rated voltage120/240
Amperage (120/240V)116.6/58.3 (propane), 104/52 (natural gas)
Harmonic distortionLess than 5%
Main line circuit breaker (A)65
PhaseSingle
Frequency (Hz)60
ControlsDigital
Weight (lb.)439
Dimensions L x W x H (in.)49 x 28 x 28

NEW SE ATS FAMILY W/ APM

AUTOMATIC TRANSFER SWITCH (ATS)SPECS
NEC ratingService entrance
Amperage rating (A)200, 150, 100
Enclosure ratingNEMA 3R
MaterialAluminum
SetupWi-Fi (removable external antenna)
ControlsDigital
Power managementUp to 4 priorities (multiple loads per priority)
Dimensions H x W x D (in.)28 x 20 x 8.3

NEW WIRELESS COMMUNICATION

GENERATOR (HSB)SPECS
Rated watts (propane / natural gas)14 kW / 12.5 kW
Rated voltage120/240
Amperage (120/240V)116.6/58.3 (propane), 104/52 (natural gas)
Harmonic distortionLess than 5%
Main line circuit breaker (A)65
PhaseSingle
Frequency (Hz)60
ControlsDigital
Weight (lb.)439
Dimensions L x W x H (in.)49 x 28 x 28

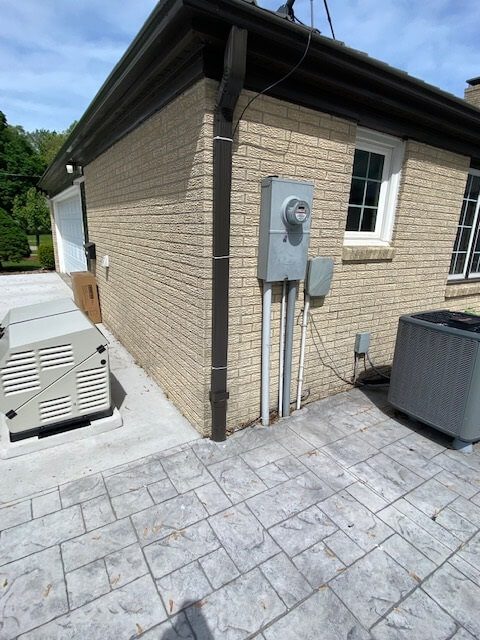

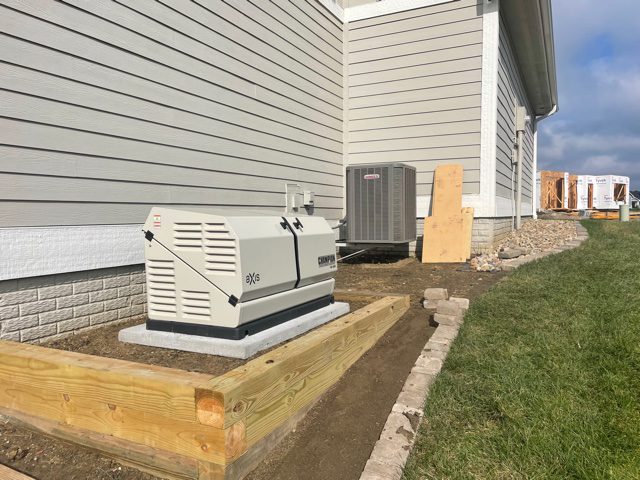

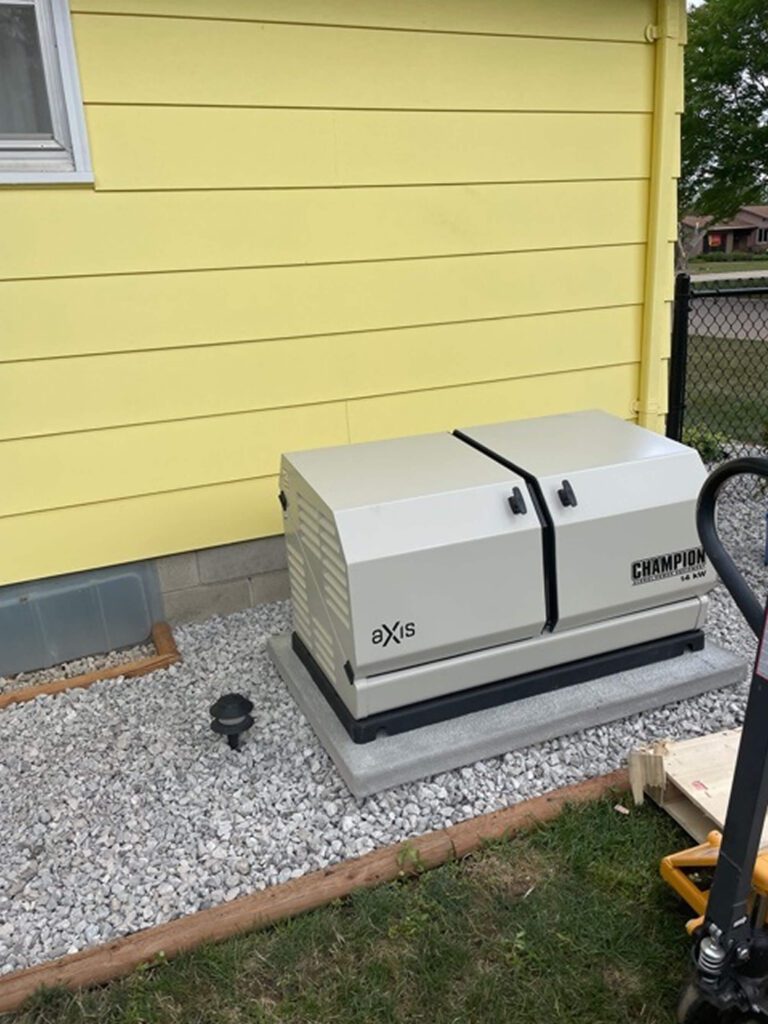

OUR GALLERY
